1. Ultra small size temperature compensated crystal oscillator SMD 3225 package, 3.2 × two point five × 1.0mm
2. Sine wave output, frequency range 32.768kHz~60MHz
3. TCXO/VC-TCXO optional
4. Ultra high precision 0.5ppm
5. Low operating voltage 1.8V~3.3V
6. Low phase noise, mainly used in industries with precision requirements such as smartphones, handheld terminals, Bluetooth, GPS, WIFI, smart cities, etc
7. Passed RoHS green environmental certification and meets Pb Free environmental requirements
|
Item / Type |
NVT32 (SMD 3225 TCXO / VC-TCXO) |
||
|

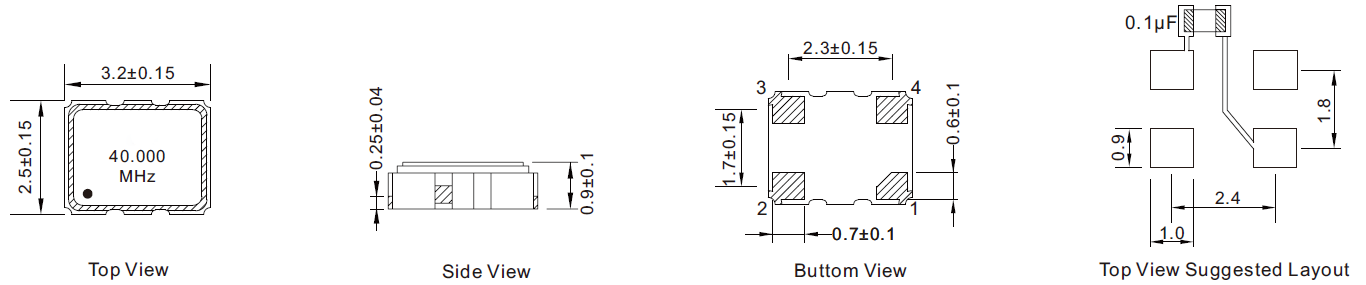

Dimensions |
3.2×2.5×1.00 mm |
||
|
Output level |
0.8Vp-p min. (Clipped Sinewave) |
||
|
Output load |
10KΩ // 10pF |
||
|
Output frequency range |
32.768kHz~60MHz |
||
|
Supply voltage |
1.8V ~ 3.3V |
||
|
Frequency stability |
Tolerance |
±1.5ppm max. |
|
|
Temperature |
±0.5ppm ~ ±2.0ppm max. |
||
|
Supply voltage |
±0.1ppm max. (Vcc±5%) |
||
|
Load coefficient |
±0.1ppm max. |
||
|
Operating temperature |
-40~ 85oC, or specify |
||
|
Supply consumption |
2.0 mA max. |
||
| VC-TCXO |
Frequency control range |
±8ppm to ±16ppm |
|
|
Control voltage range |
[email protected], [email protected], [email protected] |
||
|
Input impedance |
500 kΩ |
||
|
Symmetry |
45% to 55% |
||
|
Start-up time |
2.0ms max. |
||
|
Storage temperature |
-40~ 85oC |
||
|
Phase noise @ Offset 1kHz |
-135dBc/Hz |
||
