1. Ultra small SMD 3225 package differential high-frequency crystal oscillator, 3.2 × two point five × 1.0mm
2. LVDS signal output, high-frequency output range: 10MHz~250MHz
3. 2.5V/3.3V low operating voltage, low power consumption, high precision
4. Supports 3-state functionality
5. Low phase jitter of 0.3pS, mainly used in industries such as fiber optic communication, network communication, data storage, servers, drones, base stations, etc
6. Compliant with RoHS green environmental certification and passed international Pb Free environmental certification
| Item /Type | NDOLV32 (SMD 3225 LVDS Differential Crystal) |

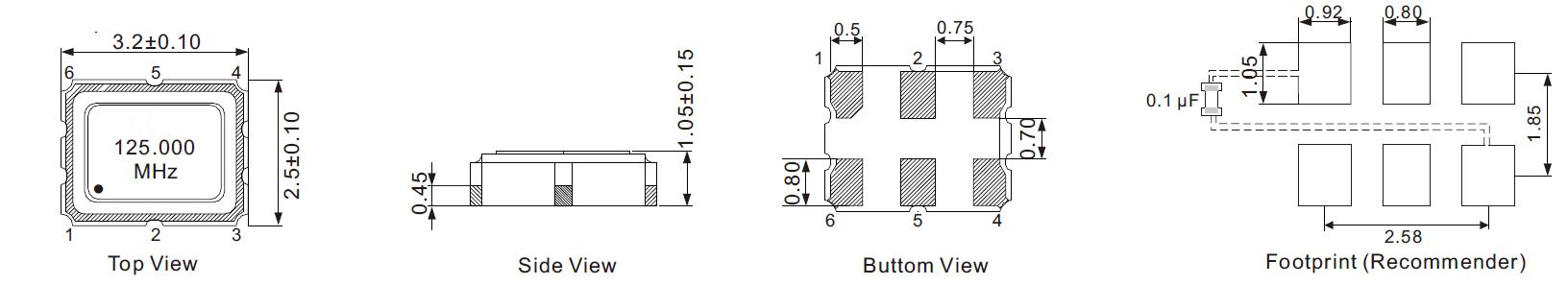

| Dimensions | 3.2×2.5×1.00 |
| Output | LVDS |
| Output load |
100Ω |
| Output frequency range | 10MHz~250MHz |
| Supply voltage | 2.5V / 3.3V |
| Frequency tolerance (All condition) |
±25 ppm, ±50 ppm, ±100 ppm |
| Operating temperature |
-20~ 70oC, -40~ 85oC |
| Current consumption |
100mA max. |
| Differential output voltage (VOD) |
25mA max. |
| Symmetry |
45%~55% |
| Chang to VOD / Offset voltage (VOS) |
50mV max. / 1.15V~1.35V |
| Offset to VOS | 50mV max. |
| Input voltage Vih (min.) / Vol (max.) |
70% Vcc min. / 30% Vcc max. |
| Rise / Fall time |
1ns max. |
| Start-up time |
10ms max. |
| Storage temperature |
-55~ 125oC |
| Phase jitter (12KHz~20MHz) |
1 pSec Max. |
